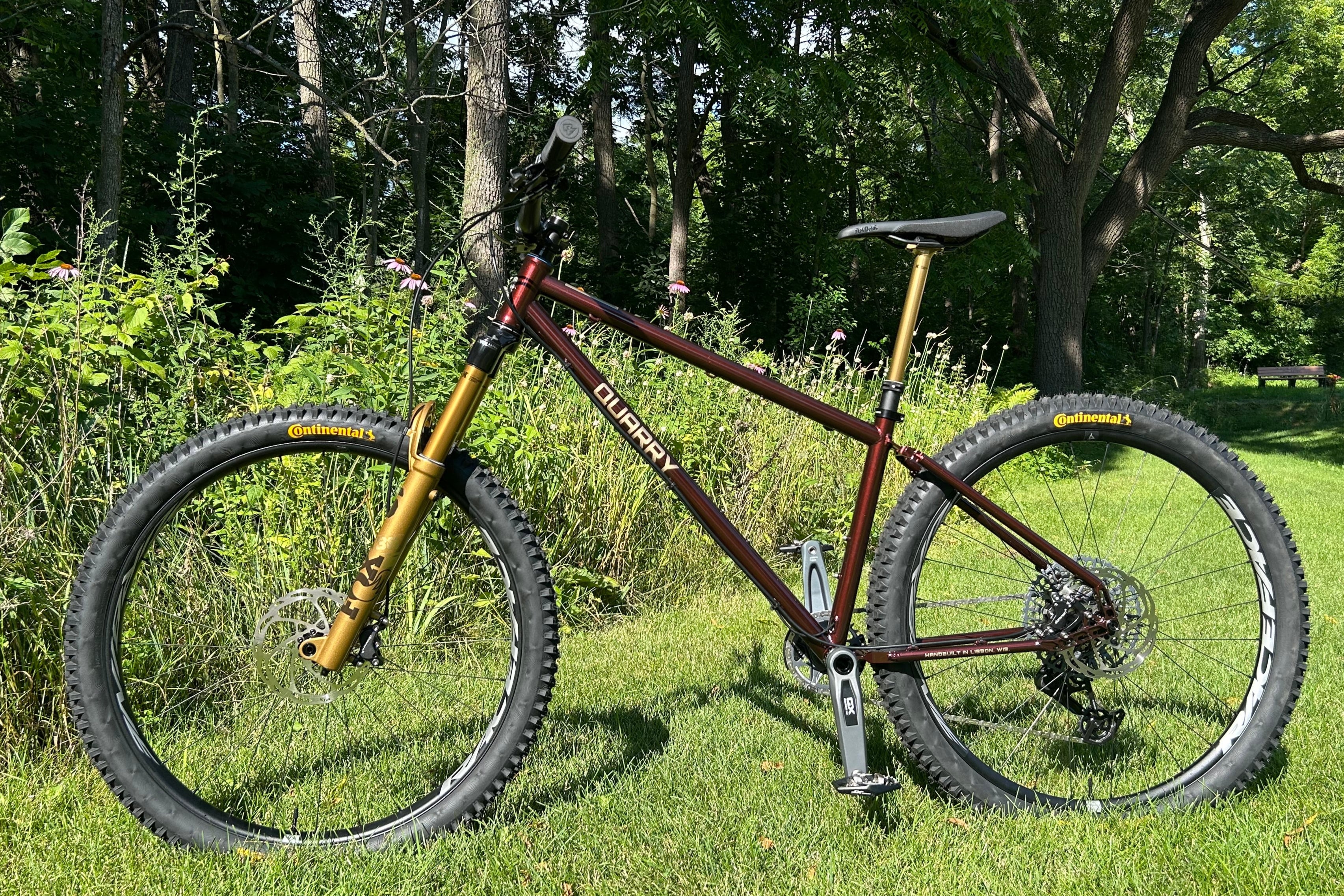

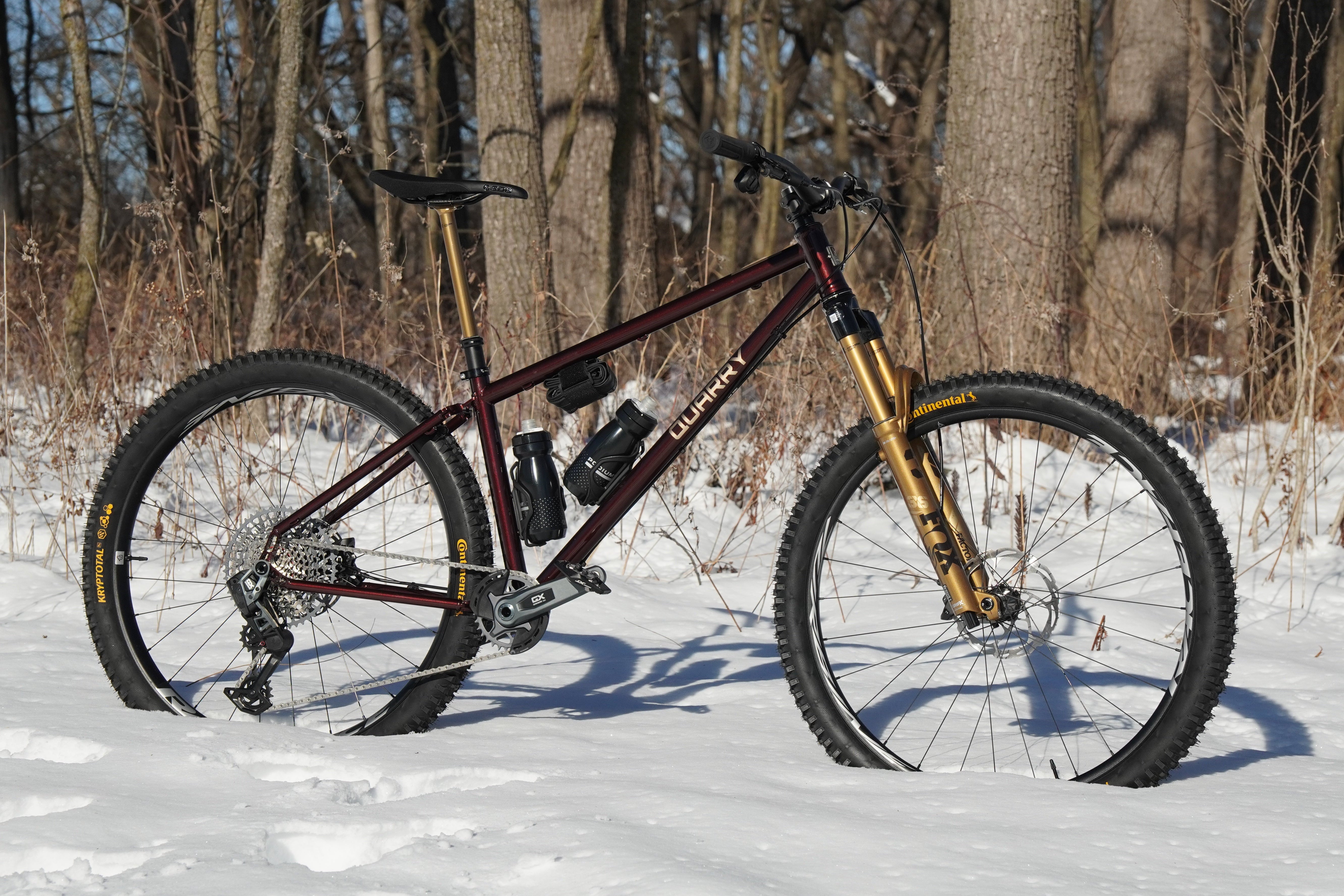

STAVE

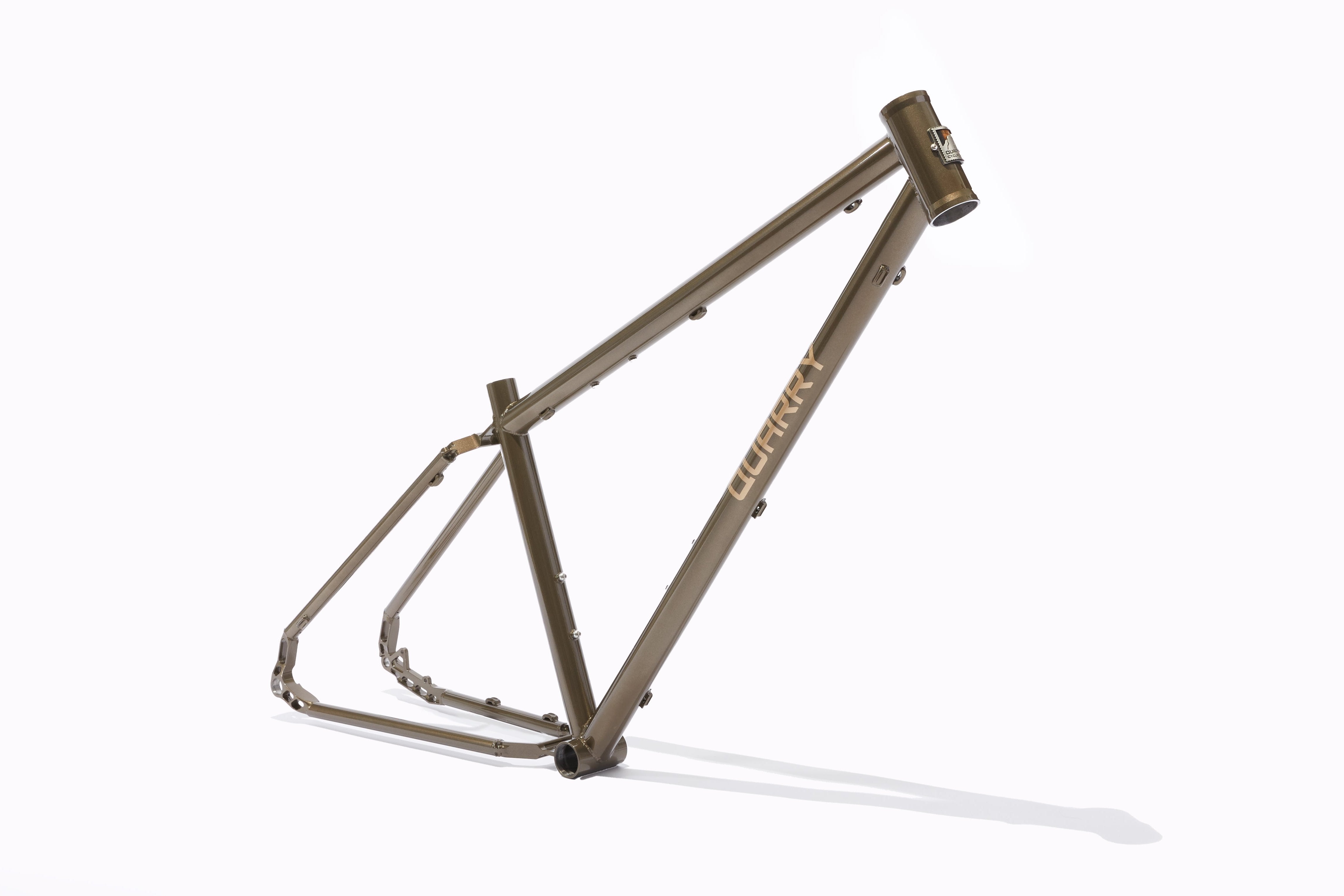

LONG-TRAVEL HARDTAIL (FRAME ONLY)

Sale price$2,550.00

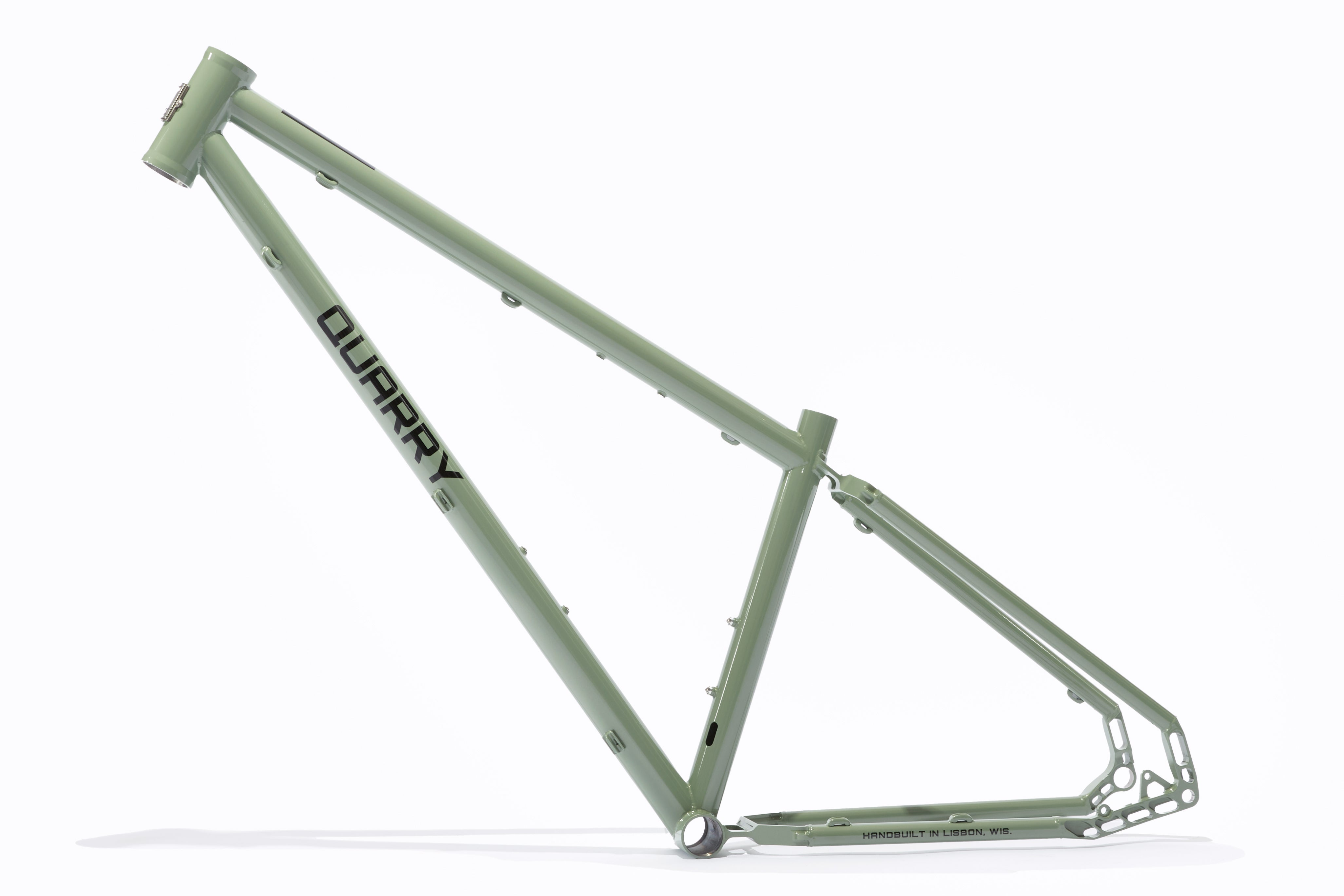

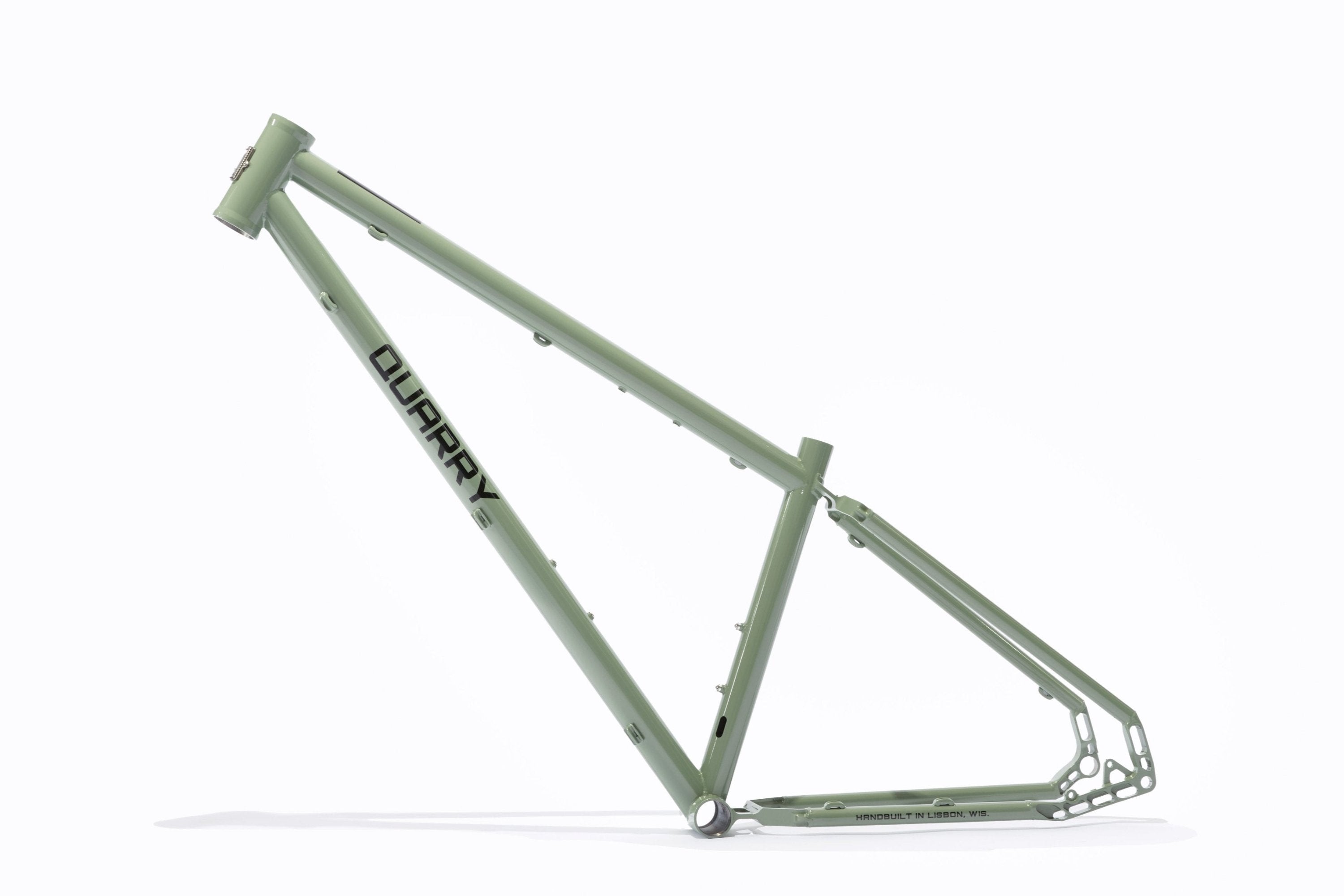

Handbuilt from rugged 4130 chromoly steel, our long-travel hardtail is all about finding the sweet spot between climbing stability and descending agility with progressive geometry. The rear triangle reduces trail chatter, so you can ride hard and stay smooth.

All frames are built to order, so please allow 4-6 weeks for your product to ship.

Free shipping on all frame orders.

Reach: 410

Reach

Color: Heritage green

Ride Hard, Smoothly

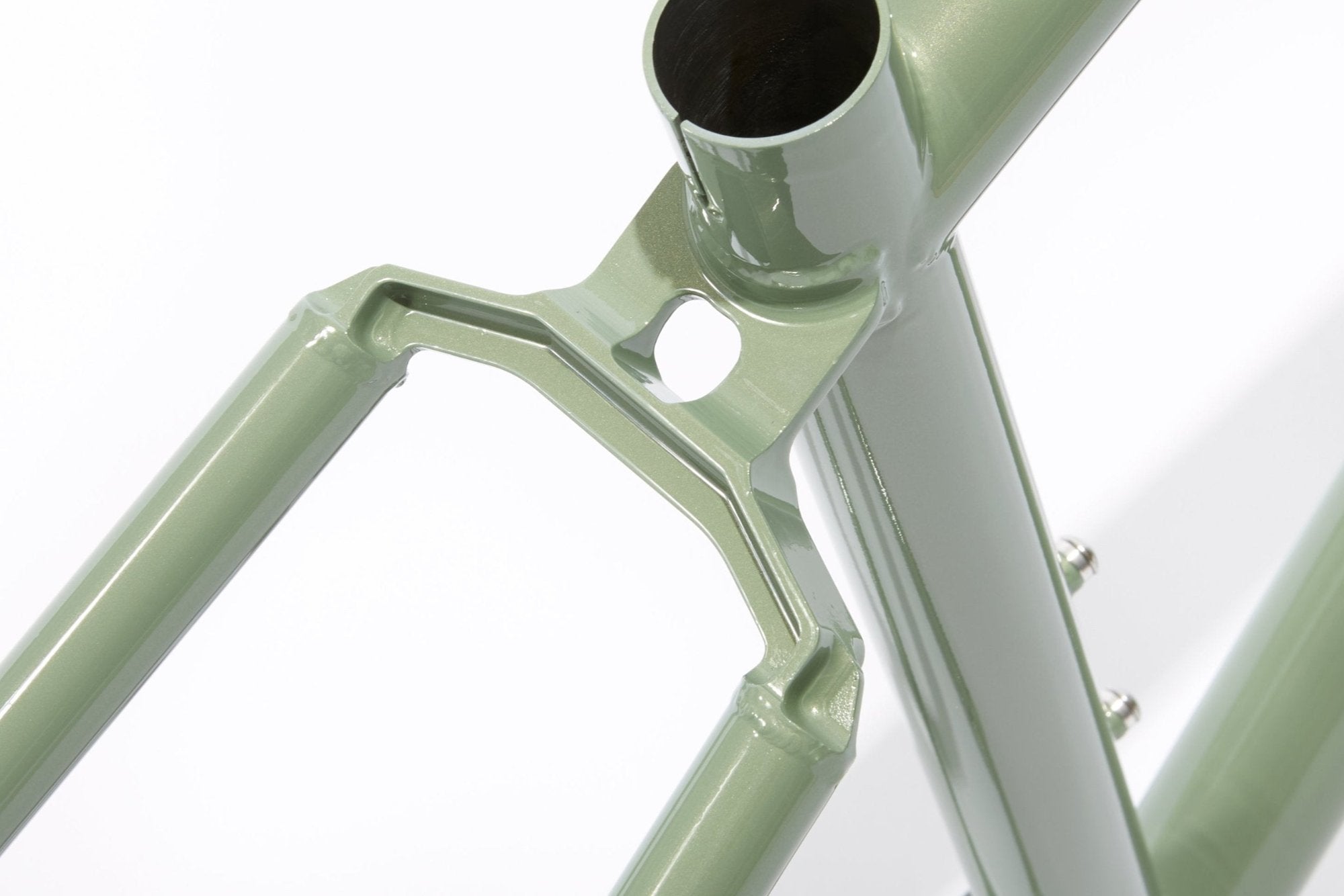

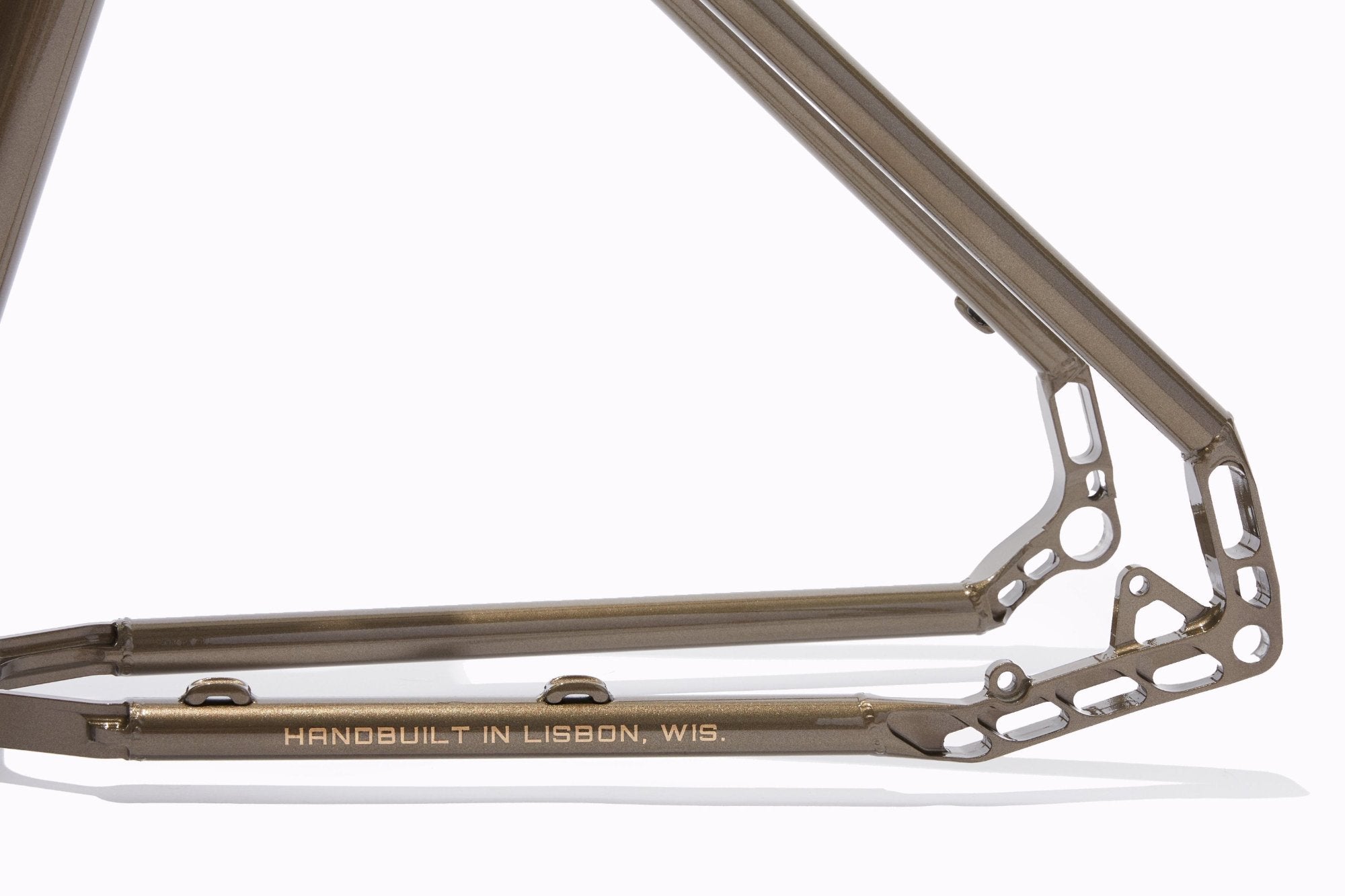

Flex points in the yokes and dropouts enhance comfort beyond what steel tubing alone can achieve — offering 3x more vertical compliance than traditional steel hardtails, without sacrificing lateral stiffness.

Increased Maneuverability

Designed with a short seat tube, this frame lets you install a longer dropper post than most hardtails, giving you the freedom to conquer any trail with confidence.

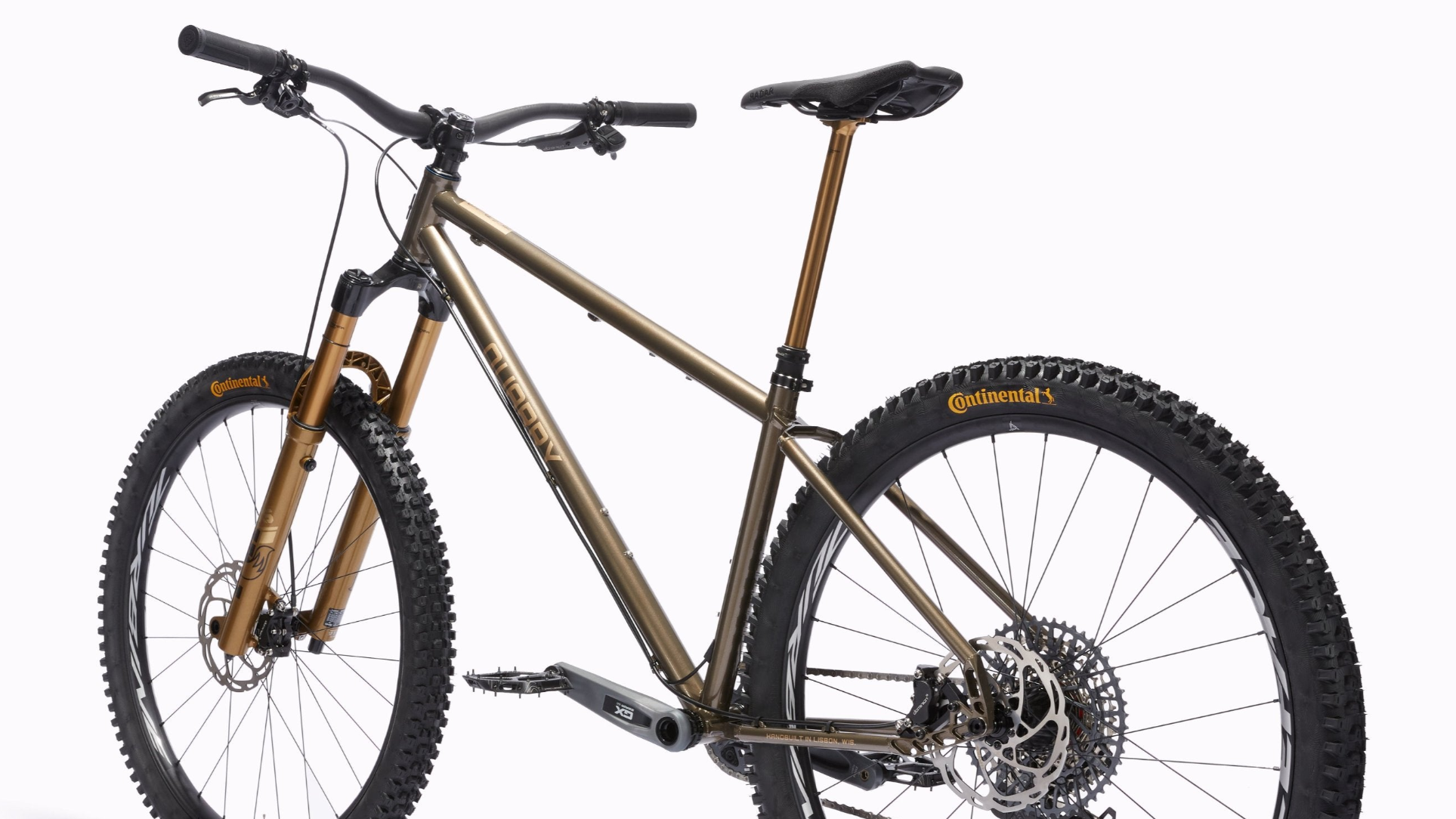

480mm reach with 240mm dropper shown

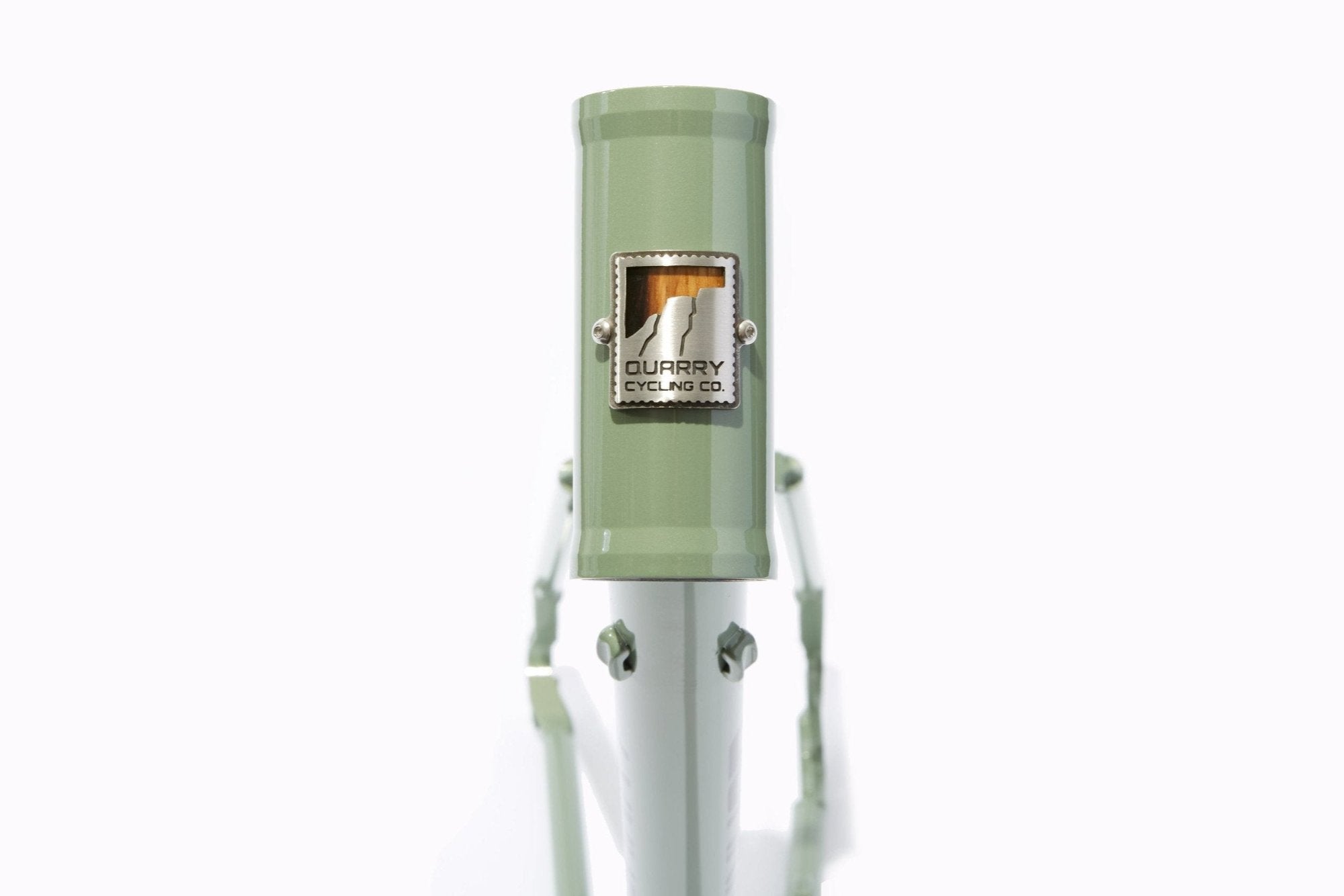

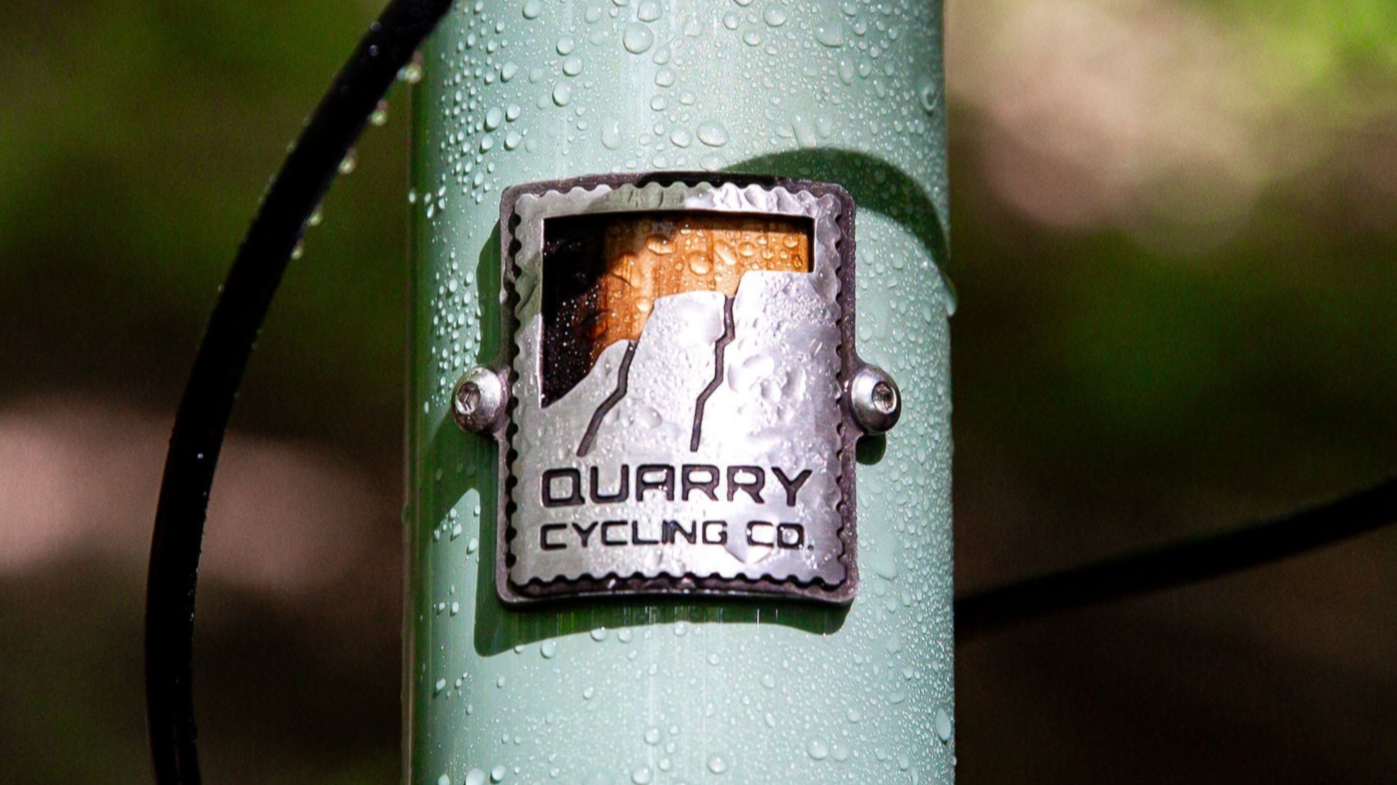

The Classic Headbadge, Reimagined

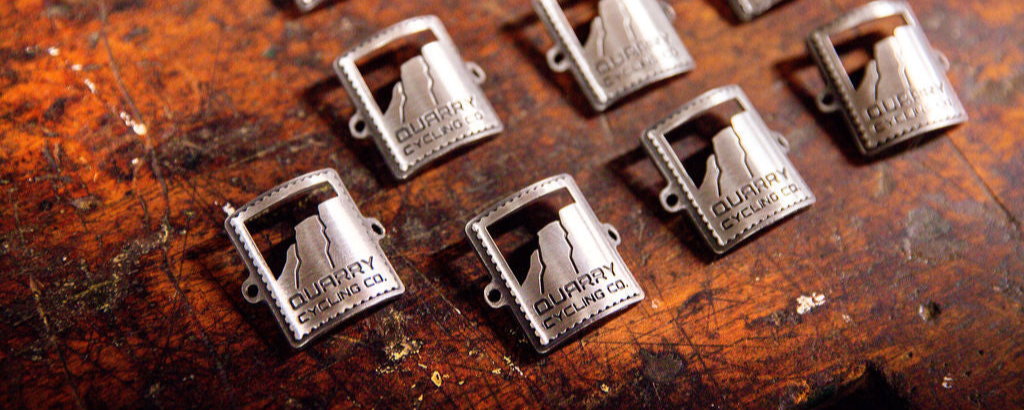

Cast in-house from pewter and accented with white oak salvaged from a whiskey barrel stave. The charred inside of the barrel is still visible. This unique blend of materials brings timeless craftsmanship to your ride.

MORE FEATURES

LESS NOISE, MORE TRAIL

Lose yourself in the trail without the distraction of chain slap. Increased clearance between the chain and chainstay makes for a quieter ride.

GOT STUFF?

We've got you covered with extra mounting points for gear.

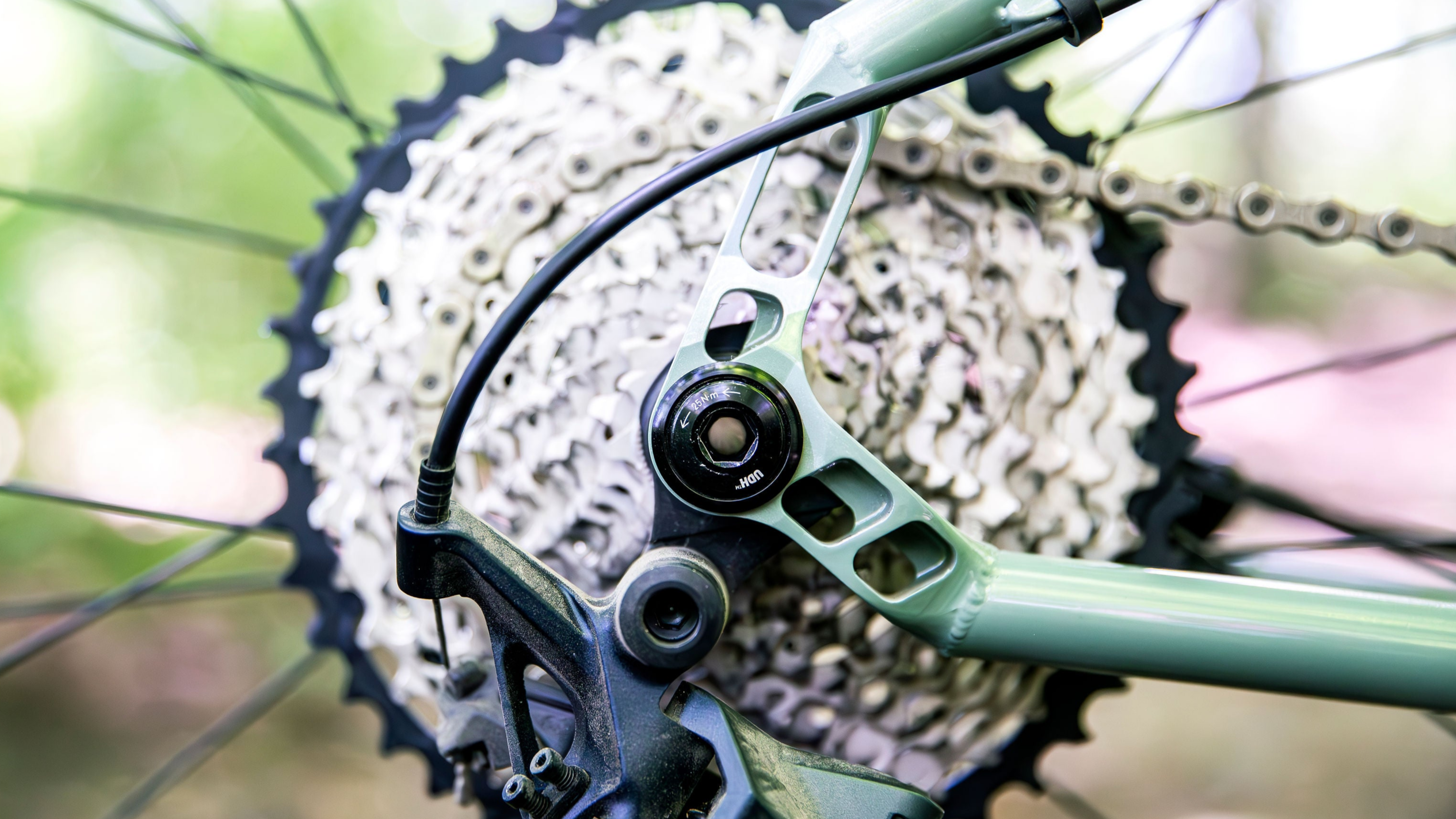

ENHANCED LATERAL STIFFNESS

With the brake mount on the chainstay and extended dropouts and yokes, we've boosted lateral stiffness for a more responsive ride.

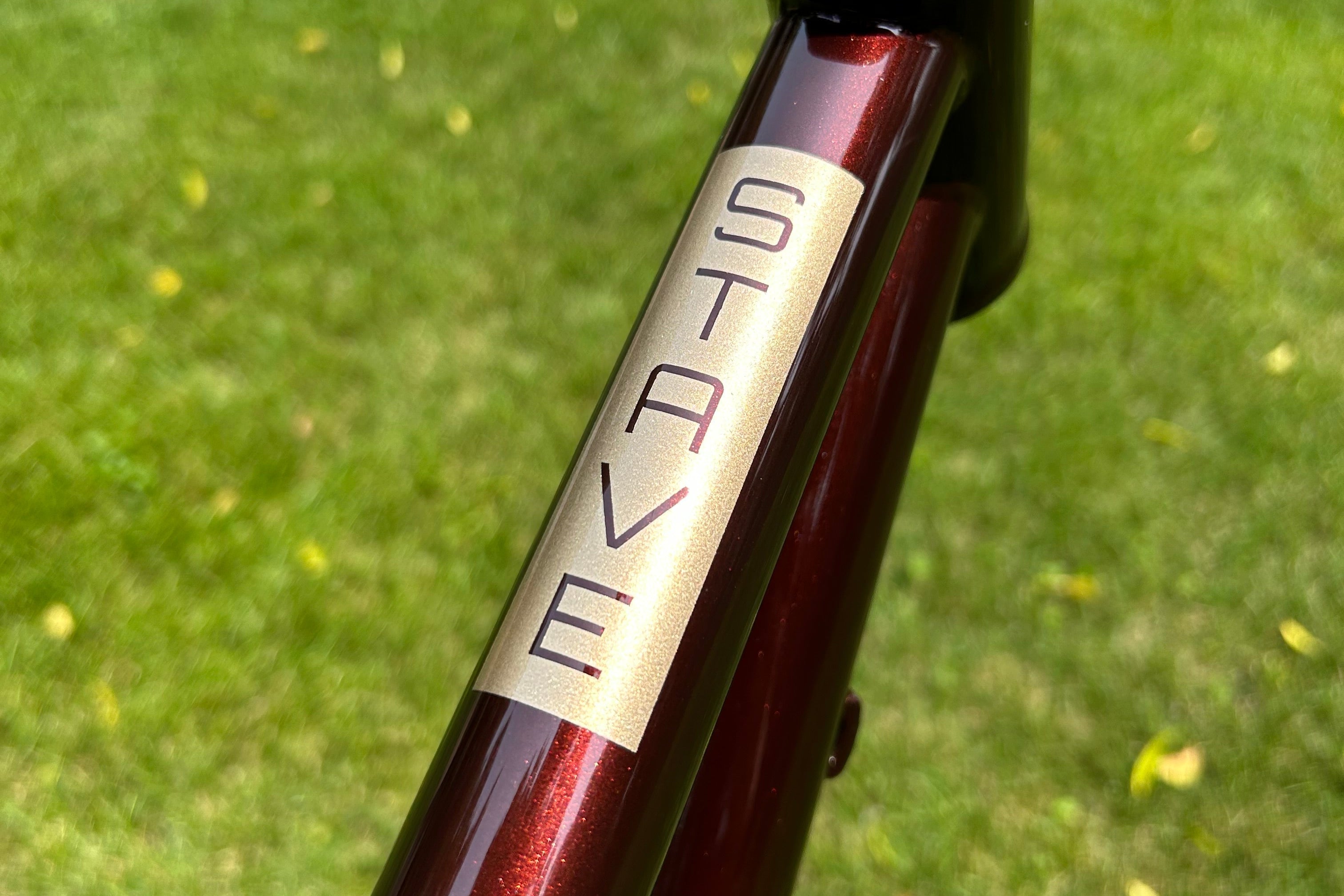

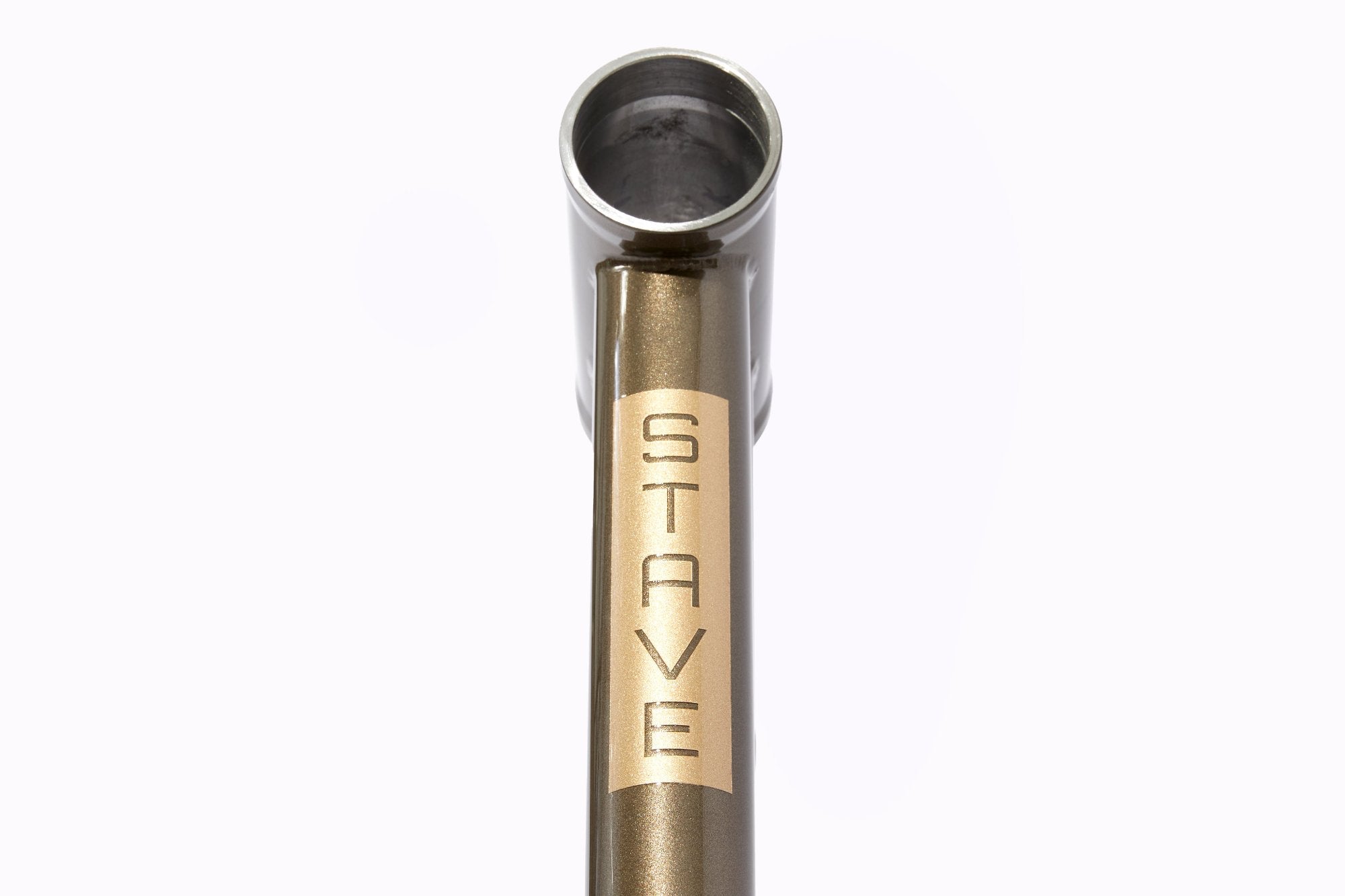

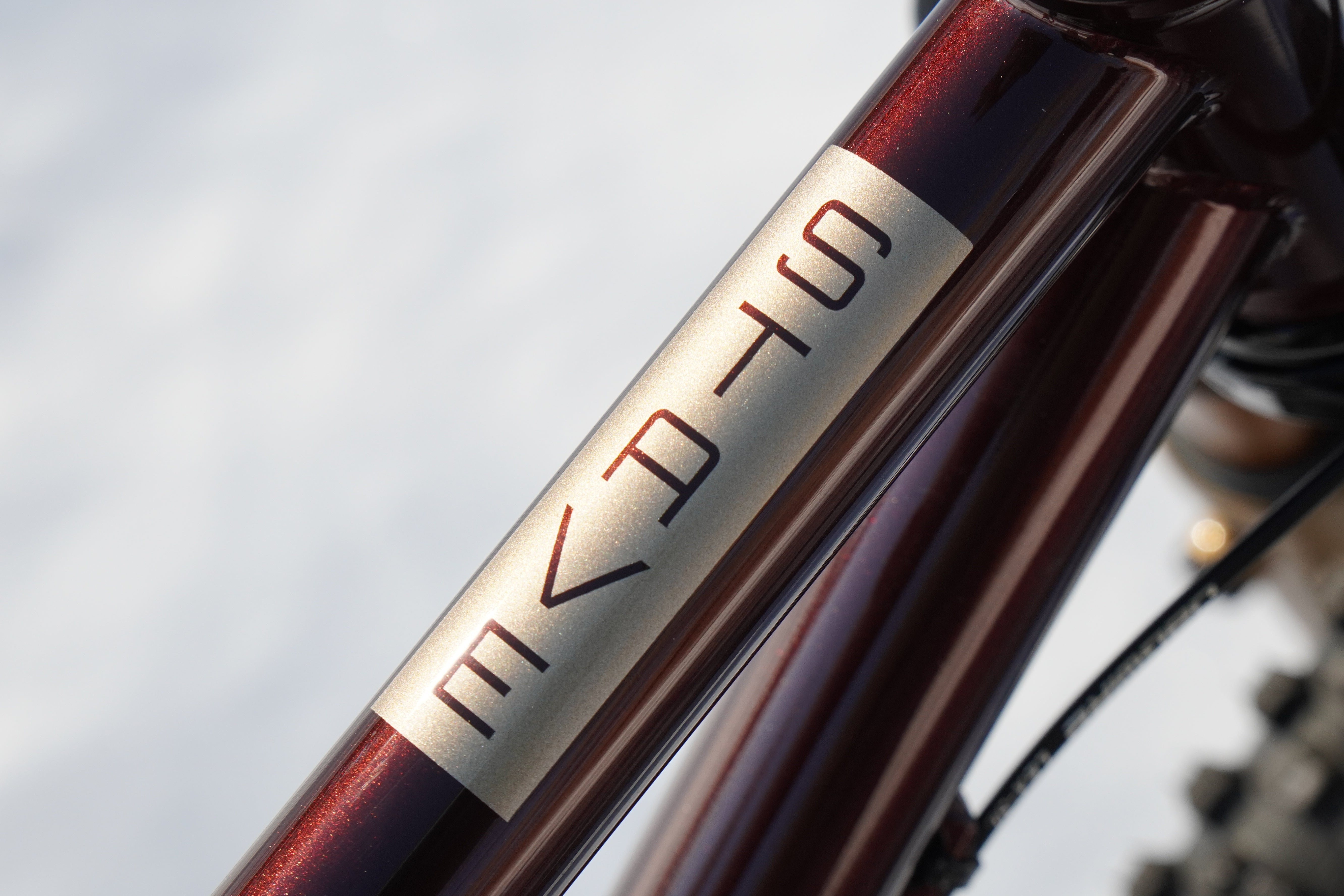

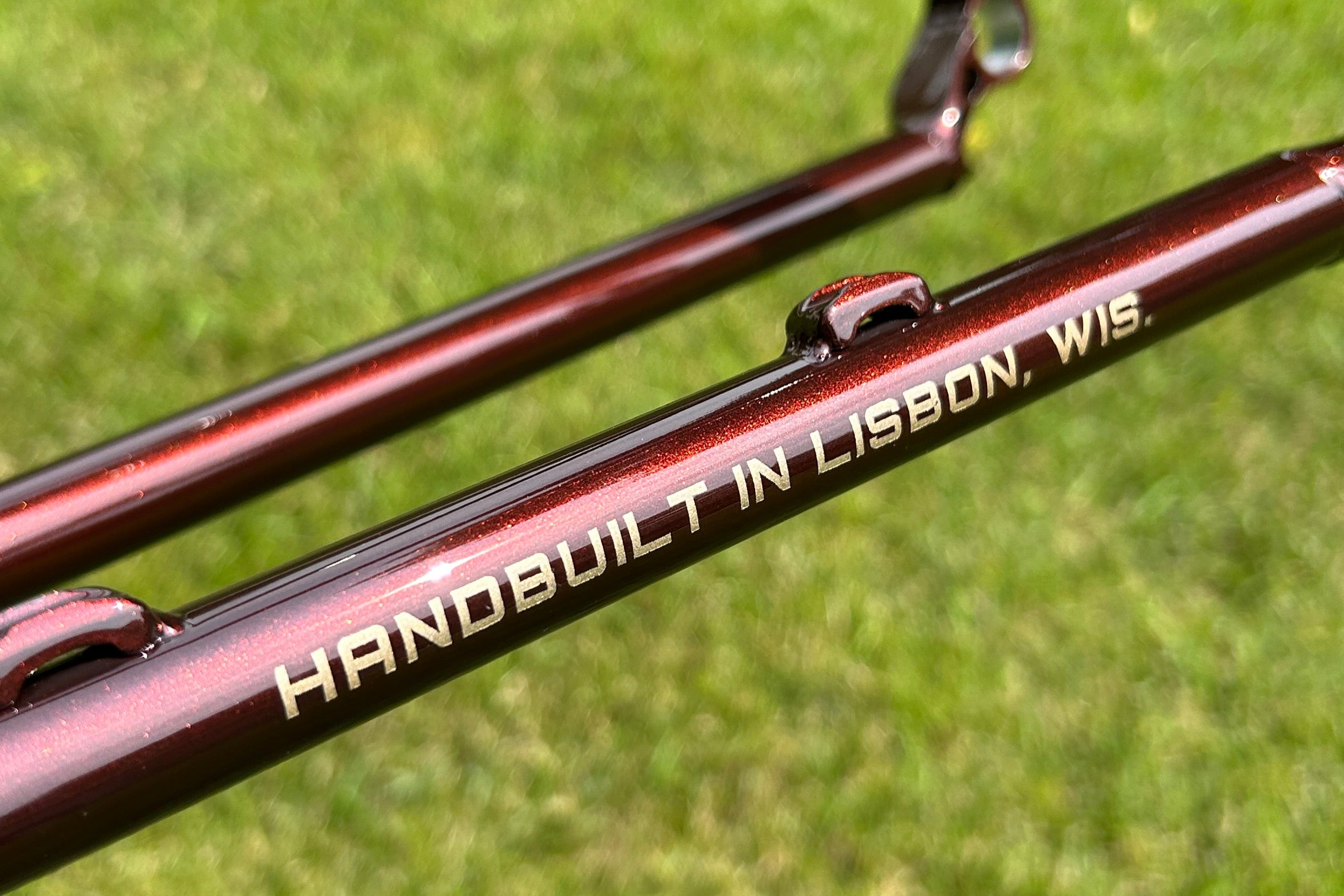

ALL PAINT

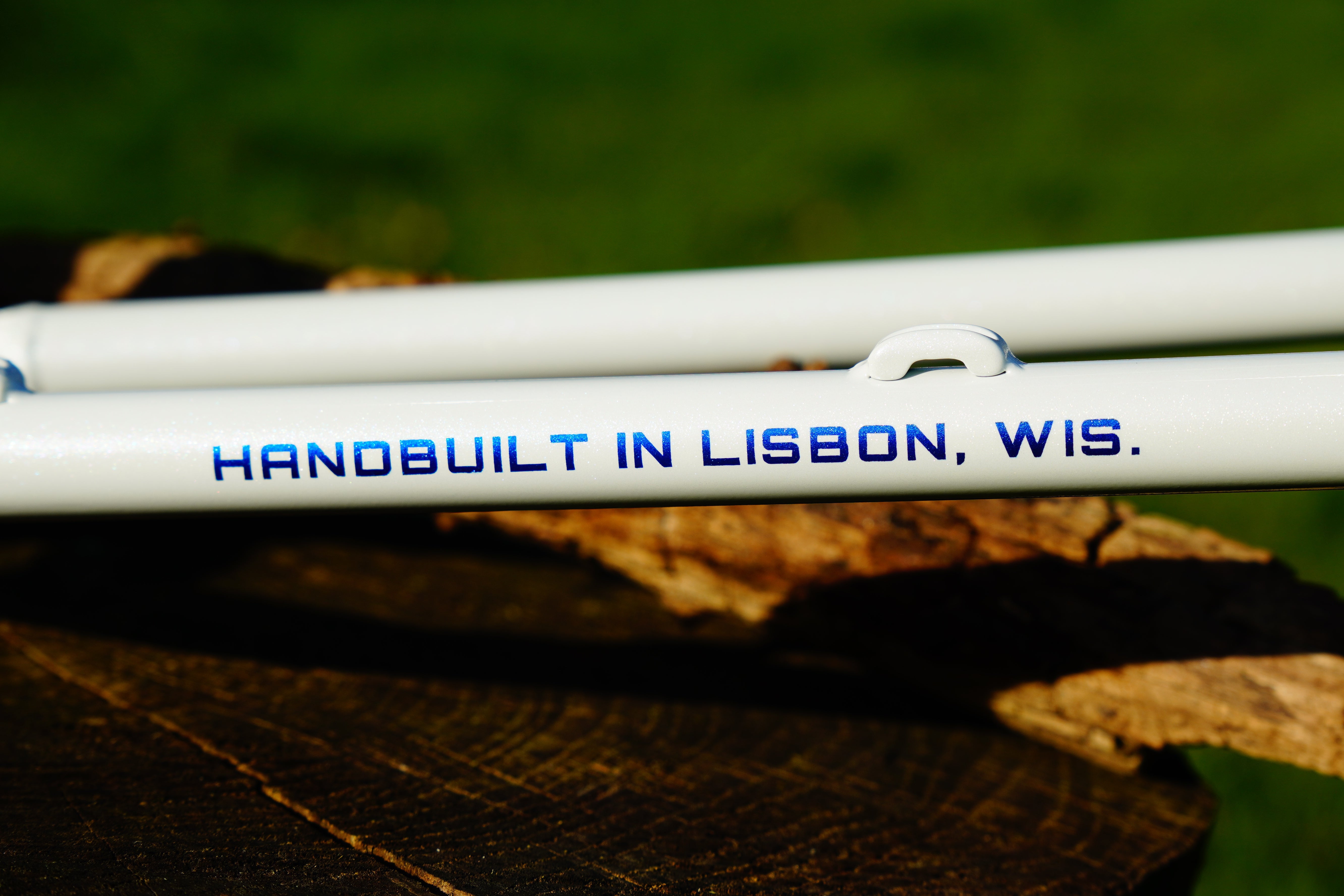

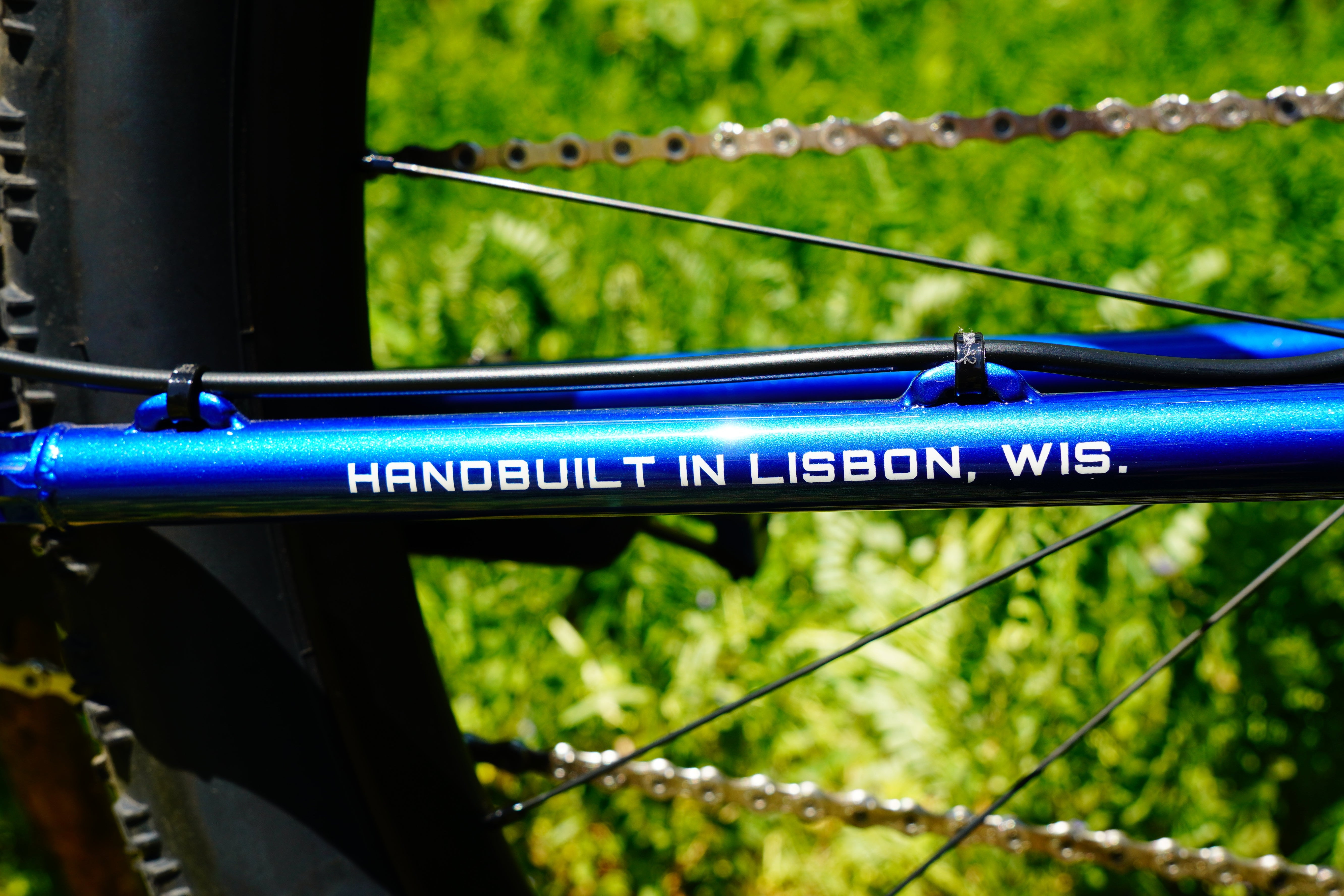

Painted-in graphics give a sleek, premium finish that outshines traditional decals.

NO BENT TUBES

Straight tubes create a stiffer front triangle and cockpit, letting your suspension and flex points handle the trail chatter.

FRAME SPECIFICATIONS

Get to know the STAVE.

MATERIAL

4130 CHROMOLY STEEL

SUSPENSION

OPTIMIZED FOR 140MM - 150MM FORK

DROP OUT

SRAM UDH

HEAD TUBE

44MM

BOTTOM BRACKET

73MM THREADED

SEAT POST

31.6MM

REAR HUB SIZE

148MM BOOST SPACING

WHEEL SIZE

29 INCHES

GEOMETRY

With progressive geometry built for speed and control, this bike is designed to fit every rider.

Dimensions in the geometry chart are based on a 140mm suspension fork.

SIZING

Just like you wouldn’t buy shoes in small, medium or large, you shouldn’t have to settle for generic frame sizes. With 24 sizes based on preferred reach, you'll get a nearly custom fit.

Use the chart below to find the ideal size (reach) for your height and riding style.

Still not sure? Reach out to us at support@quarrycycling.com.
